Smart Electronics Motor Smart Robot Car Chassis Kit

TheSmart Electronics Motor Robot Car Chassis Kitis a versatile DIY platform designed for robotics enthusiastsandArduino hobbyists. This kit provides all the essential components needed to build and program a2WD (two-wheel-drive) smart robot car.

Kit Overview:

• Ideal for:DIY robotics projects,Arduinoenthusiasts,and educational purposes.
• Functionality:Designed to introduce concepts ofrobotic motion,sensor integration,andmicrocontroller programming.

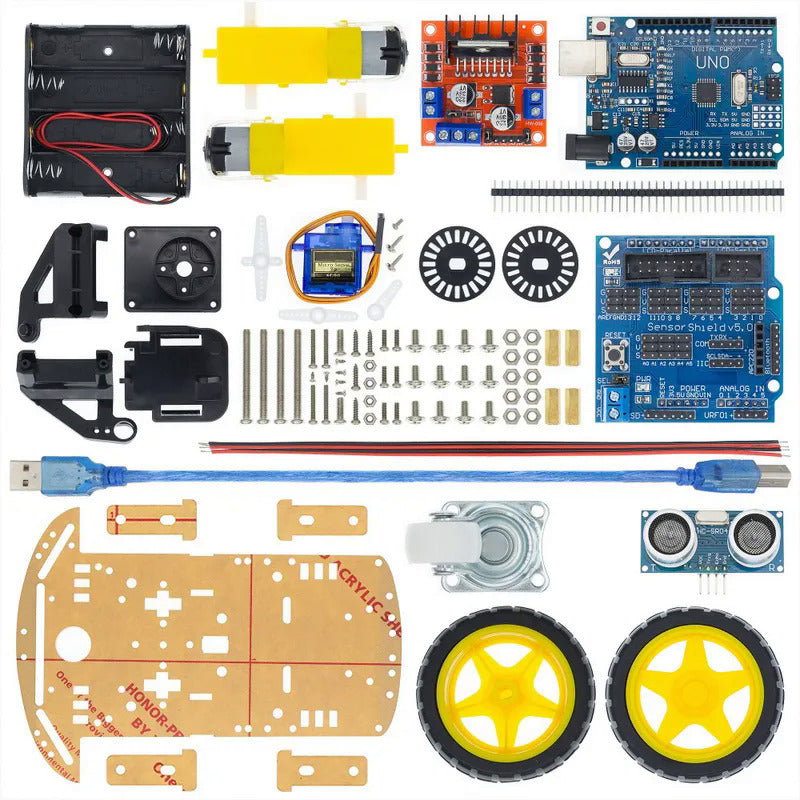

Shipping List & Components:

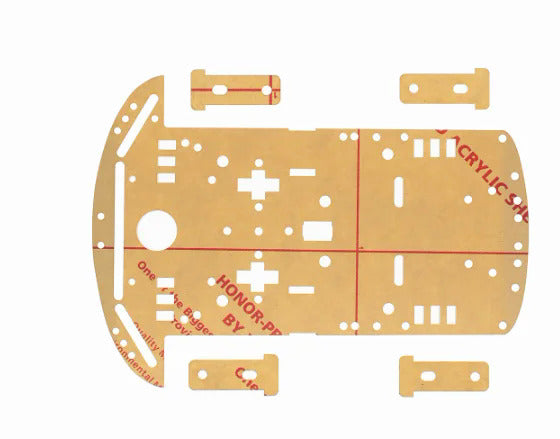

1. Car Chassis (1x):

   • High-quality acrylic basefor mounting all components.
   • Pre-drilled holes for easy assembly and mounting of motors, sensors, andother modules.

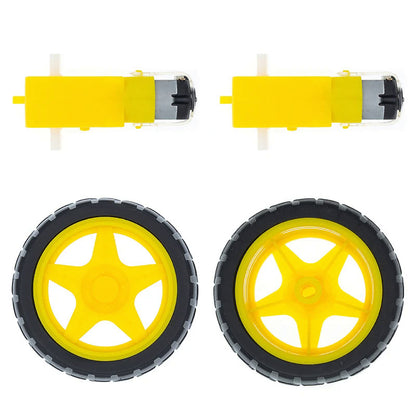

2. Car Wheels (2x):

   • Durable and compatible with the included DC motors.
   • Providessmooth traction for various surface types.

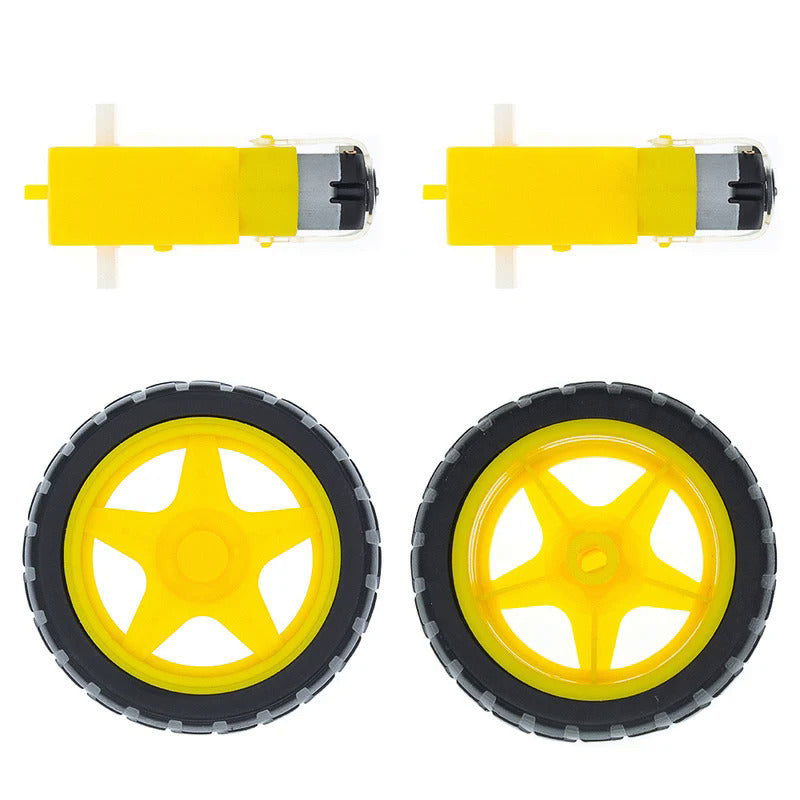

3. DC Gear Motors (2x) – 48:1 Deceleration (or optional 120:1):

   • Provides high torqueand stable speed for movement control.
   • 48:1for balanced speed and power;120:1offers higher torque with lower speed.

4. 20-Line Gun Code Disk (2x):

   • Speed encodersfor precise motor control.
   • Enables feedback on wheel rotation for advanced programming and navigation.

5. Fasteners (4x) - High-Intensity Black Acrylic:

   • For securely attaching components to the chassis.

6. Caster Wheel (1x):

   • Provides balance and support for the rear of the chassis.
   • Ensures smooth 2WD motion with a single point of contact for turning.

7. Four-Battery Box (1x):

   • Holds4 AA batteriesto power the motors and electronics.
   • Provides adequate power supply for operation.

8. Quality Rocker Switch (1x):

   • For controlling the power supply to the car.

9. Assembly Drawing (1x):

   • Step-by-stepassembly guideincluded for easy construction.

10. Screws and Nuts (Set):

    • Various screws and nuts for assembling the kit securely.

Additional Modules:

1. V5 Shield (1x):

   • Expansion board compatible withArduino Uno, simplifies wiring and connections.
   • Provides easy access to sensor ports, motor controls, andpower connections.

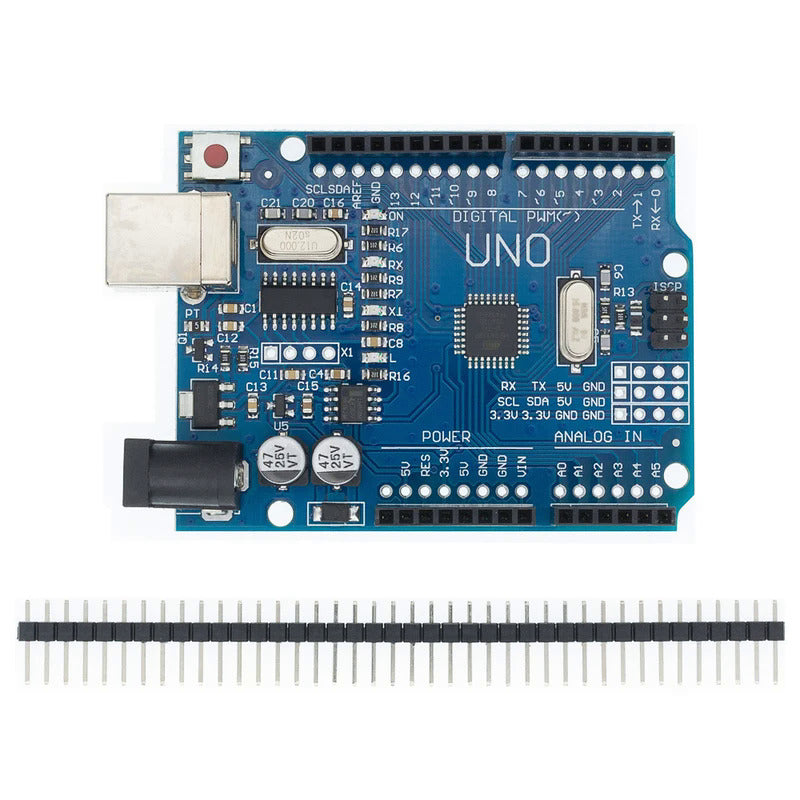

2. ONE R3 (1x):

   • Microcontroller boardbased on theATmega328P.
   • The brain of the robot car, enabling programming and control of sensors, motors, and other peripherals.

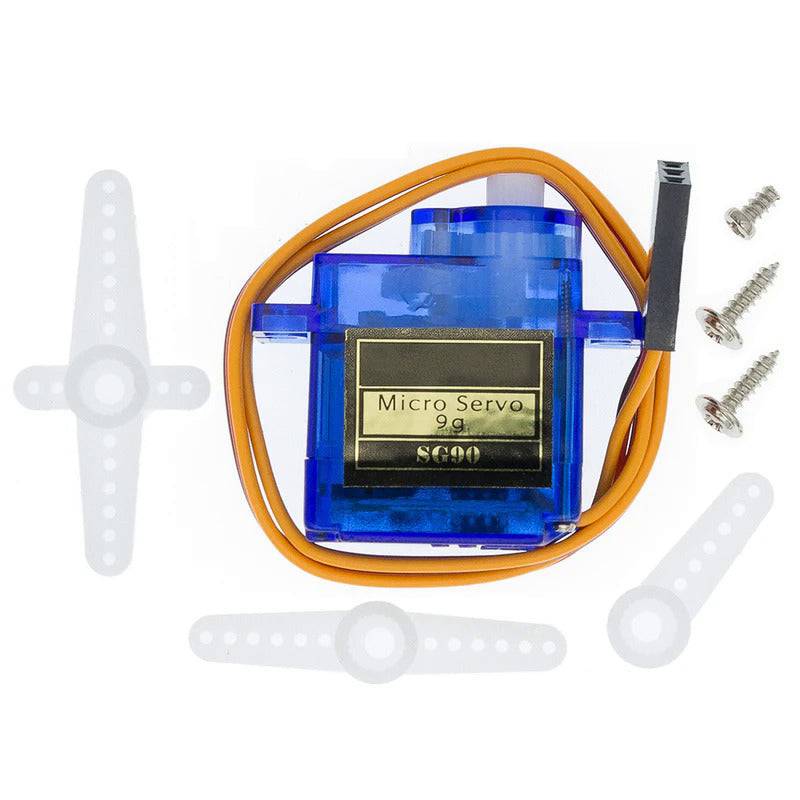

3. SG90 servo motor (1x):

   • Small, lightweight servo for controllingultrasonic sensorsor mechanical arms.
   • Can rotate0°–180°with high precision.

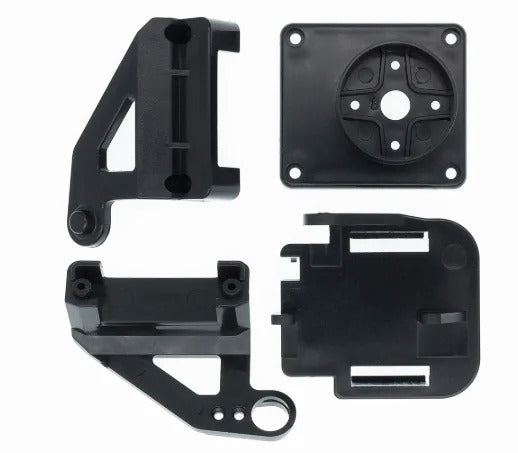

4. FPV Camera Mount (1x):

   • For attaching afirst-person view (FPV) camera(camera not included).
   • Allows real-time streaming or recording during movement (for advanced applications).

5. L298N Motor Driver Module (1x):

   • Dual H-bridge motor driver for controllingtwo DC motors.
   • Supports motor speed and direction control, essential for smart car operation.

Key Features:

• 2WD Design:
  Ensures simple yet effective movement control for basic to intermediate robotics projects.

• Speed Encoder Integration:
  Provides real-time data on wheel rotation forprecise navigation and feedback control.

• Arduino Compatibility:
  Designed to work seamlessly withArduino Uno(included), making it perfect for coding and experimentation.

• Expandable Platform:
  Supports additional sensors and modules such asultrasonic sensors, infrared sensors, and Bluetooth modulesfor enhanced functionality.

• Educational Value:
  Ideal for learning aboutrobotics, electronics, and programming. Suitable for both beginners and advanced learners.

Applications:

• STEM Education Projects
• Line-following robots
• Obstacle-avoidance robots
• Remote-controlled vehicles
• Custom robotics experiments

What's Required (Not Included):

• AA batteries (4x)
• Soldering tools(optional for advanced customizations)
• Additional sensors(for enhanced capabilities)

This kit is an excellent starting point for anyone interested in building and programming their own smart robot car. It combines educational value with practical application, making it a perfect gift or learning tool.
